In this project the customer provided all of the components for the desktop X-ray unit. These included the power supplies, fans, X-ray tube, digital camera, circuit boards and control panel. The customer requested a design that was compact and with a similar appearance to its big brother the MX20. Solid models of each component were made and utilized in the initial design layout using AutoCAD. All of the sheet metal and machine parts were designed and rendered as seen here and presented for the customer's approval before the prototype was made.

	In this project the customer provided all of the components for the desktop X-ray unit. These included the power supplies, fans, X-ray tube, digital camera, circuit boards and control panel. The customer requested a design that was compact and with a similar appearance to its big brother the MX20. Solid models of each component were made and utilized in the initial design layout using AutoCAD. All of the sheet metal and machine parts were designed and rendered as seen here and presented for the customer's approval before the prototype was made.

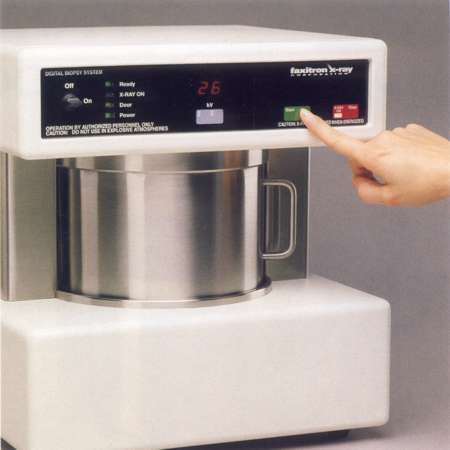

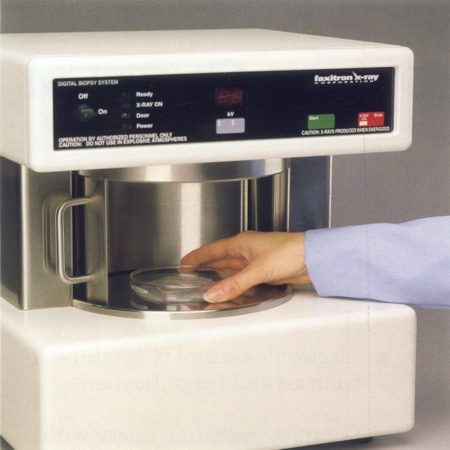

	The unique feature of this design is the cylindrical door which, when opened, rotates into the cabinet providing clear access to the camera. Specimens are easily positioned over the image plane for exposure under the center position of the X-ray beam. CORE NEEDLE BIOPSY

	A patented door interlock switch design by RME engineers provides safety from X-ray exposure when the door is open. Once the door is closed the system is enabled and allows the operator to start the system. MOUSE LEG The model DX50 Digital Biopsy System is used for evaluating Core Needle Breast Specimens and is also used as a research tool for the X-ray of mice.
